Capacitive breakthrough protection wall Electronic monitoring for walls, ceilings and floors

Capacitive breakthrough protection wall

Details

  • Electronic monitoring of walls, ceilings and surfaces in accordance with VdS Class C

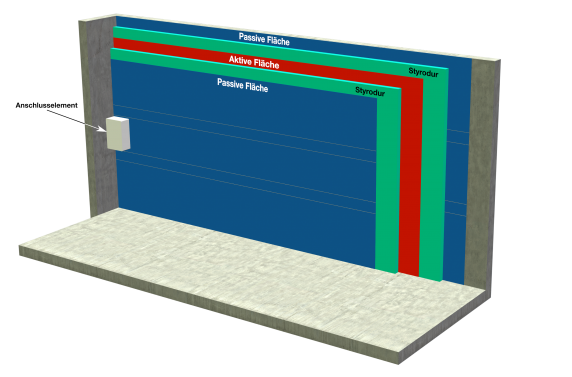

  • The capacitive sensor surface consists of three conductive non-woven layers, separated from one another by an insulating backing material. The assembly is applied directly to the inside of the wall to be secured and can be painted over once installed. This creates a discreet, flush-fitting appearance.
  • The assembly is flexible and can be easily adapted to different wall configurations, such as beams, door openings or other fixtures.
  • Maximum segment area per detector: 50 m² with 5 cm Styrodur / 30 m² with 3 cm
  • Modular design, making it expandable
  • VdS approval Class C, No. G125013
  • Monitoring type: climb-through, reach-through
  • Environmental class II (indoor use, sheltered outdoor use)
  • Dimensions of connection element: 300 x 200 x 110 mm
  • Earthing conductor: ≥ 4 mm² cross-section
  • Accessories: coaxial cable, conductive fleece, insulation boards, test module and much more

Bestell-Bezeichnung

You can find detailed information here.
